How to draw rectangle over Image?

Download Source Code

In this tutorial we are going to see how to draw rectangle over image using mouse events.

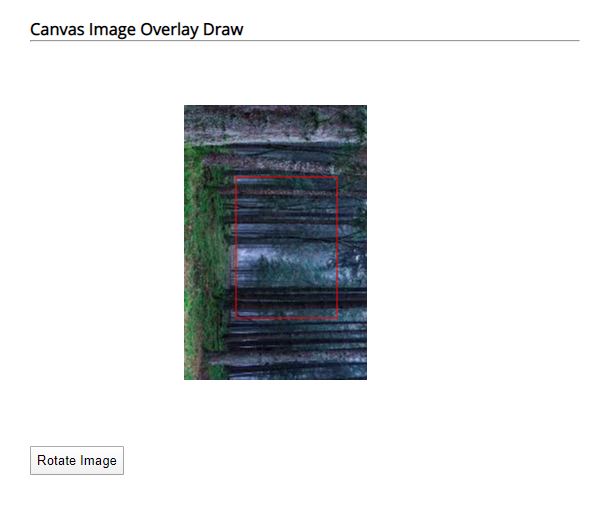

Output:

Step 1: Download the latest jquery version from jquery.com.

Step 2: Create a Html page and paste the following code inside the body tag.

<div class="container">
        <h3>Canvas Image Overlay Draw</h3>
        <hr>
        <canvas id="myCanvas" style="overflow:none" width="400" height="400"></canvas>
        <br/>
        <button id="Rotate" value="Rotate 90" style="padding:5px">Rotate Image</button>     </div>

 Step 3: create a css/Styles.css file and paste the following code.

@import url("https://fonts.googleapis.com/css?family=Open+Sans");

*{

    margin:0;

    padding: 0;

}

body{

    font-family: "Open sans";

    font-size: 14px;

}

.container{

    width:550px !important;

    margin: 25px auto;

    padding: 5px;

    border-radius: 10px;

}



    #canvas {

        width:2000px;

        height:2000px;

        border: 10px solid transparent;

    }

    .rectangle {

        border: 1px solid #FF0000;

        position: absolute;

    }



 Step 3: Create a new script file js/canvasdraw.js and reference it after the script tag of the jquery plugin.

$(document).ready(function () {

    var canvas = document.getElementById('myCanvas');

    var ctx = canvas.getContext('2d');

    var rect = {};

    var drag = false;

    var imageObj = null;

var rotateflag = true;

var degree = 0;

    function init() {

        imageObj = new Image();

        imageObj.onload = function () {                   ctx.drawImage(imageObj,imageObj.width/2,imageObj.width/2); };

        imageObj.src = 'img/forest.jpg';

        canvas.addEventListener('mousedown', mouseDown, false);

        canvas.addEventListener('mouseup', mouseUp, false);

        canvas.addEventListener('mousemove', mouseMove, false);

    }

    function mouseDown(e) {

        rect.startX = e.pageX - this.offsetLeft;

        rect.startY = e.pageY - this.offsetTop;

        drag = true;

    }

    function mouseUp() { drag = false; }

    function mouseMove(e) {

        if (drag) {

if(rotateflag)

{

ctx.clearRect(0,0,canvas.width,canvas.height);

ctx.drawImage(imageObj,imageObj.width/2,imageObj.width/2);

}

else{

drawRotated(degree);

}

            rect.w = (e.pageX - this.offsetLeft) - rect.startX;

            rect.h = (e.pageY - this.offsetTop) - rect.startY;

            ctx.strokeStyle = 'red';

            ctx.strokeRect(rect.startX, rect.startY, rect.w, rect.h);

        }

    }


    init();

function drawRotated(degrees){

        ctx.clearRect(0,0,canvas.width,canvas.height);

        ctx.save();

ctx.translate(canvas.width/2,canvas.height/2);

        ctx.rotate(degrees*Math.PI/180);

// draw it up and to the left by half the width

// and height of the image

        ctx.drawImage(imageObj,-imageObj.width/2,-imageObj.width/2);

        ctx.restore();

    }

$("#Rotate").click(function(){

rotateflag = false;

degree = degree + 90;

if(degree > 270)

{

degree = 0;

rotateflag = true;

}

console.log('degree:'+degree);

drawRotated(degree);

});



});

Download Source Code
